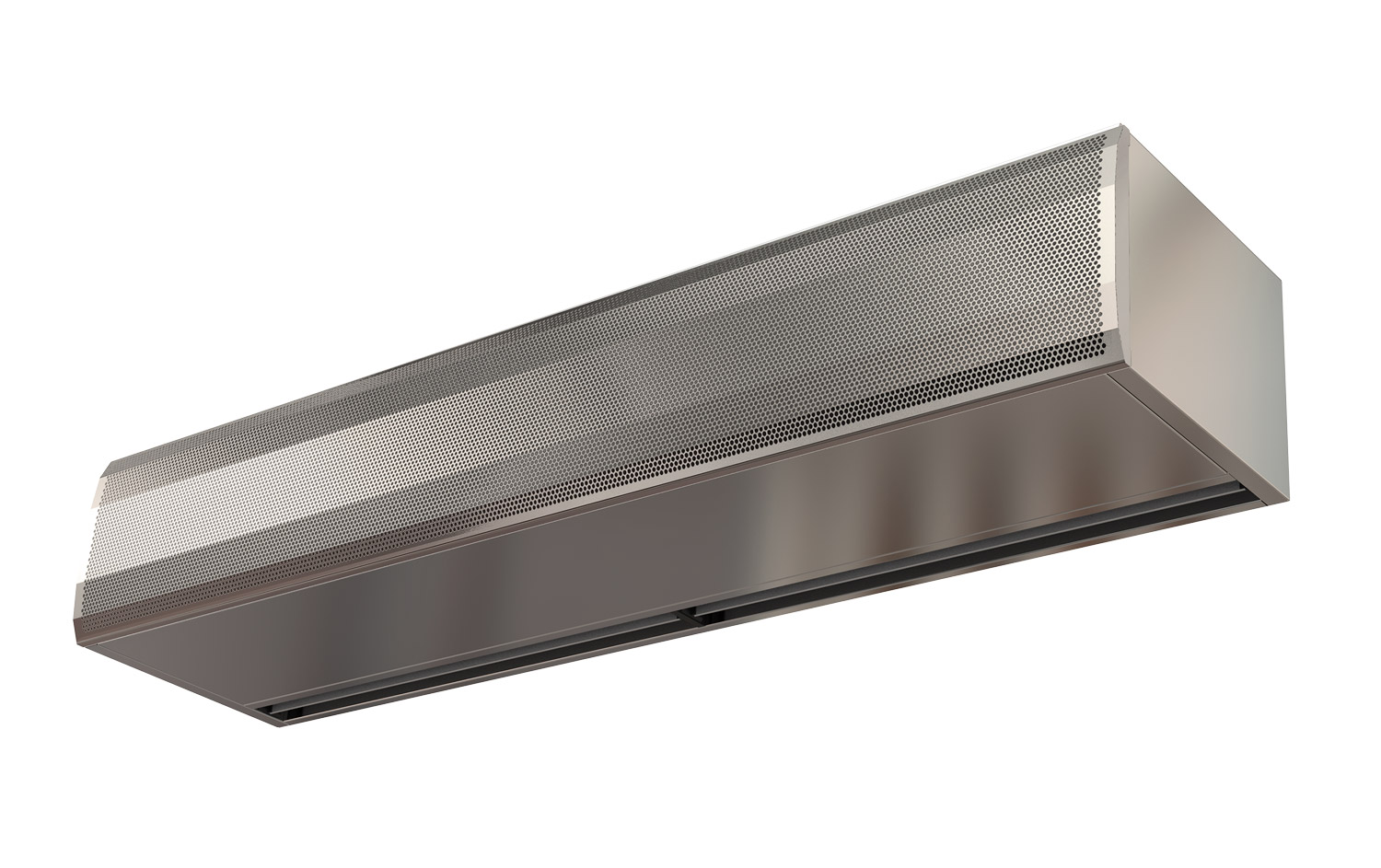

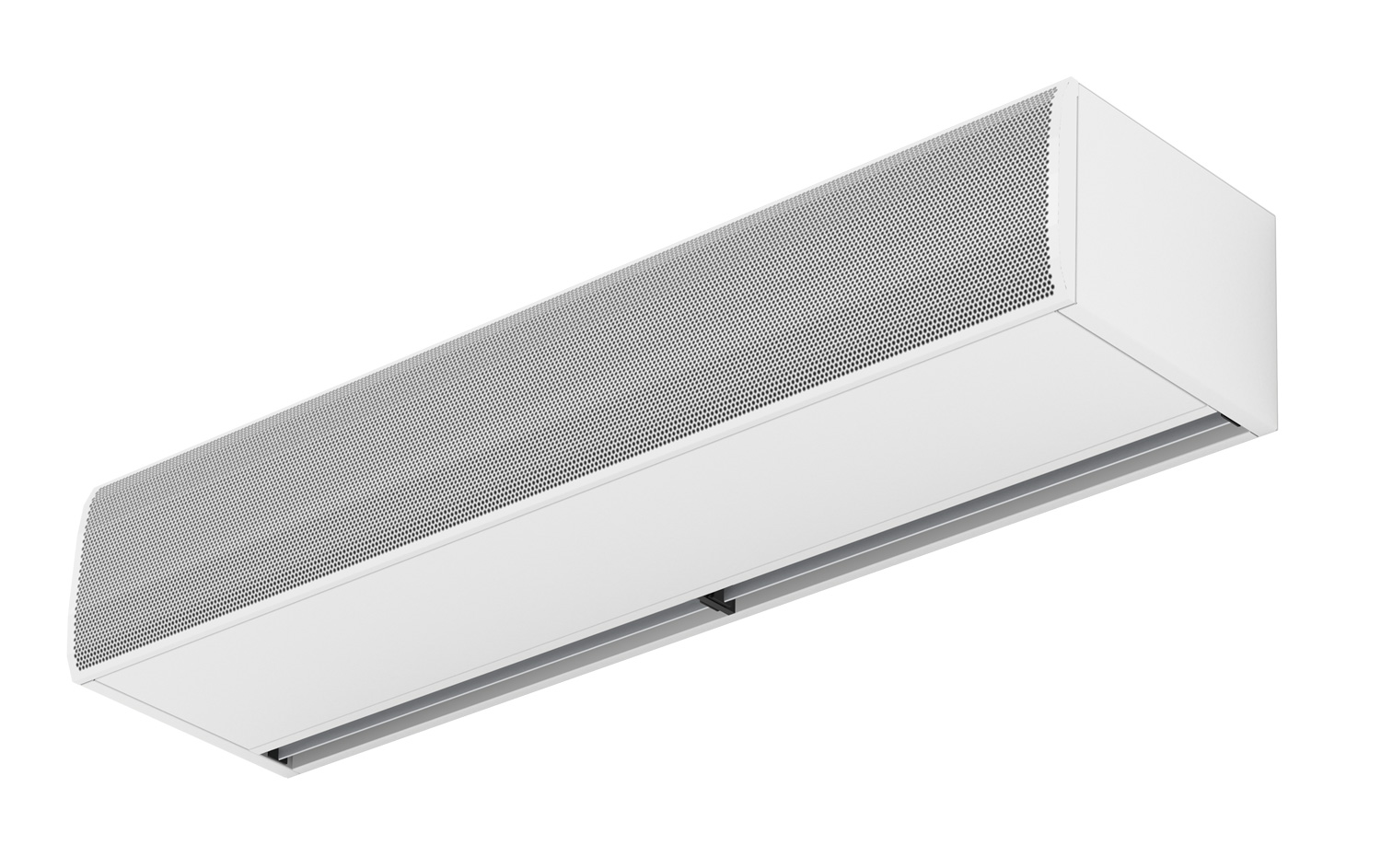

Vzduchová clona Kool IP55
Vzduchová clona speciálně pro aplikace do podmínek s extrémním chladem, vlhkostí nebo korozí. KOOL je kompaktní vzduchová clona malého rozměru s oku lahodícím nadčasovým designem. Díky konstrukci výstupu vzduchu je zajištěna nízká turbulence a vysoká rychlost proudu vzduchu, čímž dojde k účinnému oddělení prostorů s vysokými rozdíly teplot.
- Specially recommended in applications with extrem cold and/or humidity and/or corrosion conditions.
- Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request.
- Large faceted inlet grille avoiding intensive maintenance. Also available with flat micro-perforated inlet grille, more elegant for commercial doors where heating is not needed.
- Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side.
- Double-inlet centrifugal fans driven by an external rotor motor and low noise level with special IP55 protection made by: sealed bearings, encapsulate stator and wire sealed with silicone. 5-speed selector.
- Includes IP55 waterproof case for electronic components and transformer and all wire connections, including IP68 press releases.
- IMPORTANT: The electronic and transformer waterproof case cannot be assembled inside the air curtain. The customer should look for a place outside the air curtain. The dimensions of this case are 170x225x150mm.
- Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
| Model | Jmenovitý průtok m³/h | Doporučená výška instalace m |
|---|---|---|
| KM 1000 A IP55 | 1700 | 2,5-3,5 |
| KM 1500 A IP55 | 2550 | 2,5-3,5 |
| KM 2000 A IP55 | 3400 | 2,5-3,5 |
| KM 2500 A IP55 | 4250 | 2,5-3,5 |
| KM 3000 A IP55 | 5100 | 2,5-3,5 |
| KG 1000 A IP55 | 2400 | 3-4 |
| KG 1500 A IP55 | 3200 | 3-4 |
| KG 2000 A IP55 | 4800 | 3-4 |
| KG 2500 A IP55 | 5600 | 3-4 |
| KG 3000 A IP55 | 6400 | 3-4 |
